Wood heating pollutes the air in mountain areas more than previously assumed

Ajdovščina/ Leipzig, 26.07.2022

Study in Slovenian part of the Dinaric Alps sheds detailed light on fine dust distribution in a relief depression with a lot of wood burning in winter





Around 30 million people in Europe live in mountain valleys. A large part of this population is more affected by air pollution than previously assumed. This is the conclusion of a Slovenian-German research team from measurements in the Northern Dinaric Alps. Due to temperature inversions in winter, pollutants are trapped in the valleys to such an extent that soot and fine dust could reach alarming levels even in small villages, as they otherwise occur mainly in the centres of congested metropolises, write researchers from the Universities of Ljubljana, Molise and Nova Gorica and the Leibniz Institute for Tropospheric Research (TROPOS) in the scientific journal Atmospheric Chemistry and Physics (ACP). With mobile measurements using an instrumented backpack by TROPOS, it had become possible to examine the pollutant distribution in more detail.



Wood combustion is responsible for more than half of the small particulate matter (PM2.5) in Europe, which is dangerous to health. According to the European Environment Agency (EEA), wood combustion is now the largest source of this pollutant. The promotion of wood as a "carbon dioxide-neutral" fuel, the rising costs of fossil fuels and several financial crises have led to significantly increasing use of wood as an alternative source. People are more likely to burn wood for household heating in small heating systems.

Air quality studies have so far mostly focused on cities. However, in the EU, the UK and the four EFTA countries Iceland, Liechtenstein, Norway and Switzerland, over a quarter of the population live in rural areas. To study the impact of wood burning on the air quality in such villages, the researchers took a closer look at a karst hollow in Slovenia. The hollow in the municipality of Loški Potok around the village of Retje is representative of many mountainous and hilly rural areas in Central and South-Eastern Europe with wood heating systems. The study area is located in a shallow karst depression with a topography that favors the formation of temperature inversions and cold air pools typical in many valleys and relief depressions in winter. In addition to two fixed measuring stations at the bottom of the hollow in the village and on a hill, mobile measurements with instruments aboard a backpack, in particular, provided crucial details on the distribution of air pollutants in space. With this backpack, the team walked the six-kilometre route through the valley three times a day in December 2017 and January 2018  – in the morning, at midday and in the evening. In 107 measurement tours, 642 kilometres were covered on foot.

In addition to particulate matter, the team also examined one of its components: black carbon - colloquially also simply called "soot”.. Black cabon is produced by incomplete combustion of carbon-containing materials such as fossil fuels or wood. Among other things, carcinogenic substances adhere to the tiny soot particles. Black carbon is, therefore, considered a highly problematic component of particulate matter in terms of health. While the fixed measuring stations provided hourly concentrations of black carbon (eBC) of 1 to 40 micrograms per cubic metre and particulate matter concentrations (PM10) of 10 to 205 micrograms per cubic metre, the mobile measurements provided black carbon and PM2.5, but with levels more representative of the actual concentrations many people in the hollow were exposed to. These high levels of pollutants can be attributed to one effect that frequently occurs in the mountains in winter which proved to be particularly problematic: in the morning, the sun warms the upper parts of the relief depression faster than the lower parts - due to the morning fog that forms in the relief depression sheltered from the wind and prevents warming near the ground. The resulting temperature inversion acts like a lid on a pot: the exhaust gases and particles cannot escape upwards and concentrate at the bottom. In this study, several temperature inversion events occurred, during which the pedestrian level pollutant concentrations of soot (eBC) reached an average of 4.5 micrograms per cubic metre and of fine particulate matter (PM2.5) 48 micrograms per cubic metre, which is comparable to the centres of large metropolises where there is heavy traffic. These values are much larger than the European Union's annual limit (20 micrograms per cubic metre) and the World Health Organisation's (WHO) recommendations for the daily limit (15 micrograms per cubic metre). As measured by the EU Air Quality Index for fine particulate matter (PM10 and PM2.5), air quality was very poor during such temperature inversions. Overall, air quality was only moderate during the entire study period (December and January).

"During temperature inversions, pollutant levels in the hollow were highest in the early evening, reaching up to 22 micrograms per cubic metre for black carbon and 560 micrograms per cubic metre for particulate matter. This is the result of domestic wood burning, which increases when people come home after work, and the stable air layer at the bottom of the hollow. However, with some wind, both black carbon and particulate matter levels in the basin dropped to less than 1 and 12 micrograms per cubic metre, respectively, which is about four times lower than during a temperature inversion and in line with European regional background levels," reports Dr. Kristina Glojek who studied for her PhD at the University of Ljubljana. During morning and afternoon temperature inversions, in the village of Retje, people living on the lower part of the south-facing slopes were most exposed to the high concentrations of particulate matter, while in the early evening hours, when the inversion is limited to the bottom of the hollow, people there breathe in the highest levels of pollutants.

Such weather conditions are typical for hilly and mountainous regions. During the study, temperature inversions occurred on more than 70 per cent of all winter nights and mornings. "These very stable conditions prevent effective mixing of the air in the relief depression, which leads to increased pollutant levels. Therefore, during temperature inversions, particulate matter concentrations in the sink rise to levels comparable to those in larger European city centres and above the EU daily limit value (PM10 = 50 micrograms per cubic metre) as well as above the annual limit value and the WHO daily guideline values (PM2.5 = 20 and 15 micrograms per cubic metre, respectively)," emphasises Prof. Mira Pöhlker from TROPOS.

From the researchers' point of view, the example of the small relief depression in Slovenia points to a problem that is not limited to this region alone: "The pollutant concentrations measured during the temperature inversions in the rather sparsely populated small relief hollow are worrying, as similar conditions can be expected in numerous hilly and mountainous regions throughout Europe, where about 20 percent of the total population live, 30 percent of whom live in rural relief hollows comparable to the Retje site," emphasises Prof. Griša Močnik from the University of Nova Gorica.

In the view of the Slovenian-German research team, the results of this study highlight the importance of high-resolution measurements of air quality also in rural areas to monitor and aim to reduce the residential wood-burning pollution and its consequent health effects, especially in mountainous areas with limited atmospheric self-purification capacity. Therefore, they specifically propose:

1. to study pilot sites at smaller spatial scales that could help decision-makers to take effective action at the local level;
2. raising public awareness of the problem of air pollution from wood burning, including knowledge of the negative effects on health, energy efficiency, the economic costs of ineffective burning, the optimal use and regular maintenance of heating appliances, and the use of quality fuels (e.g. dry wood);
3. informing residents when weather conditions cause pollutants to concentrate in the valley and burning wood is not recommended;
4. identifying local major polluters as they may be the main cause of deterioration of local air quality;
5. to encourage retrofitting of existing stoves, centralizing combustion in district heating systems, improving energy retrofitting of buildings, and changing fuel if there is a better alternative are possible options to reduce pollution from wood burning.

It is also important to strongly involve the local population in the measures to reduce pollution emissions. Furthermore, everyone should be aware that there is not one universal solution to this complex problem. Rather, measures are needed at several levels, taking into account geographical and cultural specificities. Tilo Arnhold







Publication:

Glojek, K., Močnik, G., Alas, H. D. C., Cuesta-Mosquera, A., Drinovec, L., Gregorič, A., Ogrin, M., Weinhold, K., Ježek, I., Müller, T., Rigler, M., Remškar, M., van Pinxteren, D., Herrmann, H., Ristorini, M., Merkel, M., Markelj, M., and Wiedensohler, A.: The impact of temperature inversions on black carbon and particle mass concentrations in a mountainous area, Atmos. Chem. Phys., 22, 5577–5601, https://doi.org/10.5194/acp-22-5577-2022 , 2022

The study was funded by the Slovenian Research Agency (grant nos. MR-2016 and P1-0385) and the European Cooperation in Science and Technology (COST COLOSSAL, grant no. CA16109).





Contacts:

Dr. Kristina Glojek
Researcher, Center for Atmospheric Research, University of Nova Gorica, Ajdovščina, Slovenia
https://www.ung.si/en/research/center-for-atmospheric-research/

and
Prof. Griša Močnik
Head, Center for Atmospheric Research, University of Nova Gorica, Ajdovščina, Slovenia
https://www.ung.si/sl/imenik/21902/grisa-mocnik/

and
Prof. Mira Pöhlker
Head of the Department of Experimental Aerosol and Cloud Microphysics, Leibniz Institute for Tropospheric Research (TROPOS), Leipzig
Phone +49-341-2717-7445
https://www.tropos.de/institut/ueber-uns/mitarbeitende/mira-poehlker

and
Prof. Alfred Wiedensohler
Group Leader Calibration Centre, Department of Experimental Aerosol and Cloud Microphysics, Leibniz Institute for Tropospheric Research (TROPOS), Leipzig
Phone: +49 341 2717-7062
https://www.tropos.de/institut/ueber-uns/mitarbeitende/alfred-wiedensohler

and
Andrea Cuesta-Mosquera M.Sc. / Dr. Honey Dawn C. Alas
PhD students, Department of Experimental Aerosol and Cloud Microphysics, Leibniz Institute for Tropospheric Research (TROPOS), Leipzig
Phone +49-341-2717-7397 / -7372
https://www.tropos.de/en/institute/about-us/employees/andrea-cuesta-mosquera
https://www.tropos.de/en/institute/about-us/employees/honey-alas



or
Tilo Arnhold
Public Relations, Leibniz Institute for Tropospheric Research (TROPOS)
Phone: +49-341-2717-7189
https://www.tropos.de/en/current-issues/press-releases
and
Andreja Leban
Public Relations, University of Nova Gorica
Phone: +386 5 62 05 827
https://www.ung.si/en/news/source/22/pr/





Links:

Ultrafine aerosol particles, soot and air quality: TROPOS Long-term studies for particulate air quality
https://www.tropos.de/en/institute/departments/experimental-aerosol-and-cloud-microphysics/tropospheric-aerosols-workgroup/ultrafine-particles-and-air-quality







The Leibniz Institute for Tropospheric Research (TROPOS) is a member of the Leibniz Association, which connects 97 independent research institutions that range in focus from the natural, engineering and environmental sciences via economics, spatial and social sciences to the humanities. Leibniz Institutes address issues of social, economic and ecological relevance. They conduct knowledge-driven and applied basic research, maintain scientific infrastructure and provide research-based services.

The Leibniz Association identifies focus areas for knowledge transfer to policy-makers, academia, business and the public. Leibniz institutions collaborate intensively with universities – in the form of “Leibniz ScienceCampi” (thematic partnerships between university and non-university research institutes), for example – as well as with industry and other partners at home and abroad.

They are subject to an independent evaluation procedure that is unparalleled in its transparency. Due to the importance of the institutions for the country as a whole, they are funded jointly by the Federation and the Länder, employing some 20,500 individuals, including 11,500 researchers.

The entire budget of all the institutes is approximately 2 billion euros. They are financed jointly by the Federal Government and the Länder. The basic funding of the Leibniz Institute for Tropospheric Research (TROPOS) is therefore financed by the Federal Ministry of Education and Research (BMBF) and the Saxon State Ministry of Science and the Arts (SMWK). The Institute is co-financed with tax revenues on the basis of the budget approved by the Saxon State Parliament.

www.leibniz-gemeinschaft.de/en/home/
www.bmbf.de/en/index.html


https://www.smwk.sachsen.de/





Mobile measurements - during the run. Photo: Kristina Glojek, University of Nova Gorica

Wood smoke. Photo: Kristina Glojek, University of Nova Gorica

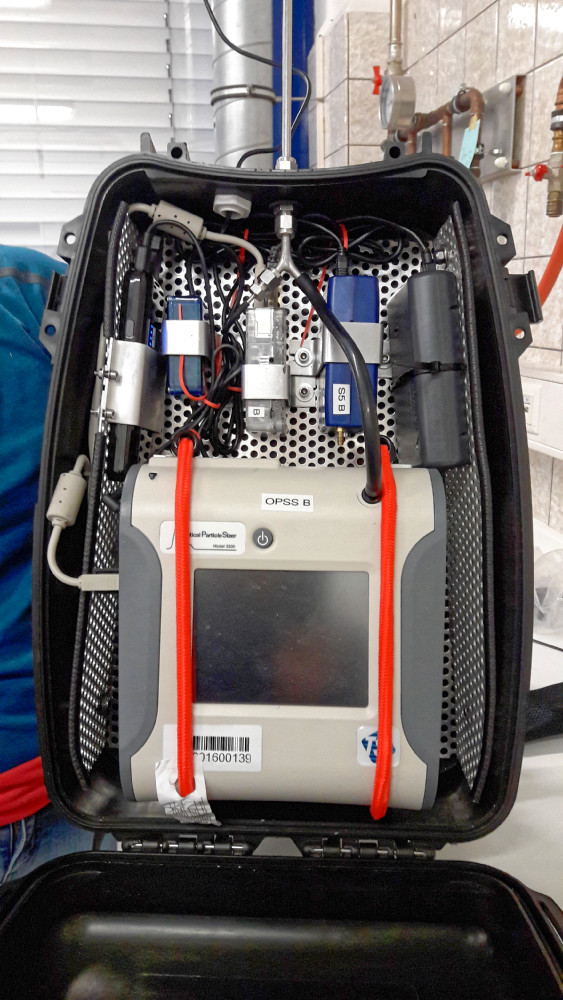

Inside of the TROPOS backpack. Photo: Kristina Glojek, University of Nova Gorica

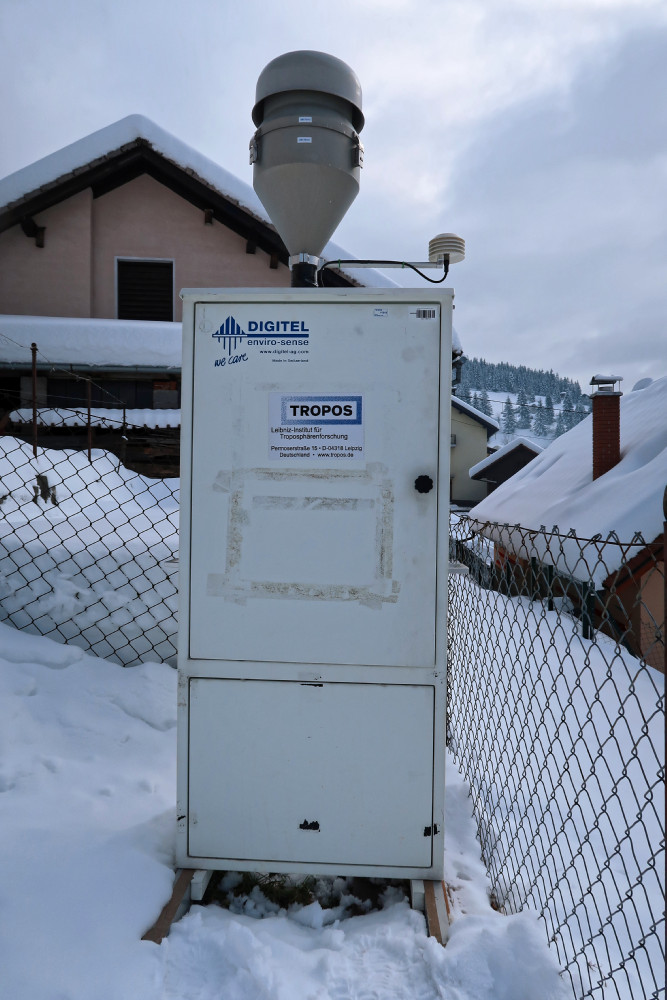

Measurements of PM10 in Retje. Photo: Kristina Glojek, University of Nova Gorica
